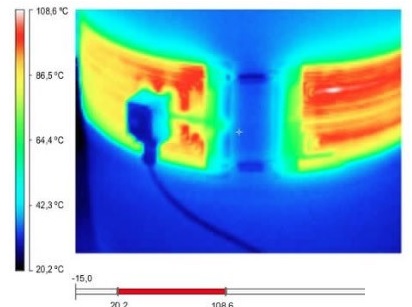

Silicone heating blankets are constructed with embedded electrical resistance elements between layers of silicone rubber — a material known for its excellent thermal resistance, flexibility, and electrical insulation properties. However, even though they are robust, they must operate within a safe thermal dissipation limit to prevent premature failure, carbonization, or overheating spots.

Why is W/cm² Important?

Heater Safety:
Each blanket has a maximum dissipation limit. If the installed power is too high for the available surface area, heat will not distribute properly, creating hotspots that may damage the silicone.

Heating Time:
The higher the thermal dissipation (W/cm²), the faster the drum, tank, or surface will reach the desired temperature. However, this must be balanced to avoid compromising material integrity.

Process Compatibility:
Heat-sensitive products such as oils, resins, and chemicals benefit from moderate dissipation levels, preventing product degradation.

Typical Dissipation Values for Silicone Heating Blankets

Although each manufacturer has its own standards, the following values are commonly found in the industry:

• 0.3 to 0.5 W/cm² – Low dissipation, ideal for temperature maintenance with minimal risk.
• 0.6 to 0.8 W/cm² – Most commonly used range to promote temperature rise, providing efficient and safe heating.
• 1.0 to 1.2 W/cm² – High dissipation, used in specific applications or small areas; requires good heat transfer to prevent overheating.

Above 1.5 W/cm², silicone typically begins operating near its thermal limit, and the application must be carefully evaluated.

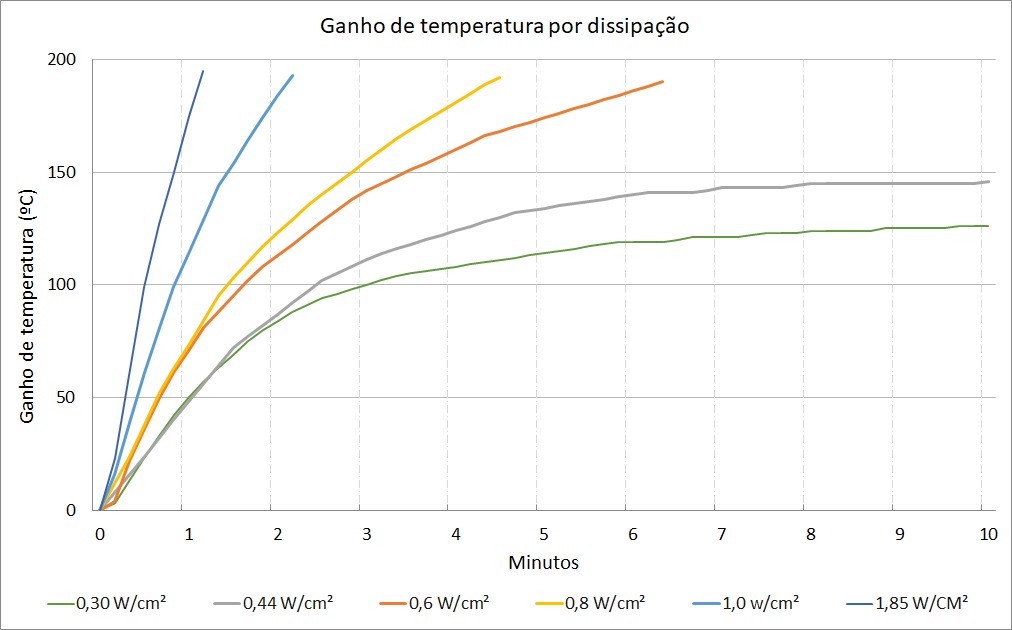

Thermal Dissipation vs. Heating Time Graph

The graph shows both the temperature gain of the heating blanket according to its thermal dissipation (Final Temperature = Ambient Temperature + Temperature Gain), as well as the heating time and temperature behavior over time.

Notice that the higher the thermal dissipation, the greater the temperature gain and the faster the heating rate. However, higher dissipation is not always better for heating your product. Depending on what is being heated and the required process heating time, lower dissipation values may be recommended.

At higher dissipation levels, heating is more abrupt. At lower dissipation levels, heating is smoother — which can even help reduce temperature variation across the blanket, allowing for greater temperature control precision.

Factors That Influence Dissipation

Installed Power (W):
The higher the power, the greater the dissipation.

Blanket Area (cm²):
Dissipation is always power divided by area.

Thermal Conductivity of the Heated Surface:
Metals dissipate heat very efficiently, whereas plastics have poor heat dissipation.

External Thermal Insulation:
Using insulation reduces heat loss and allows for more efficient dissipation.

Simple Calculation

Dissipation (W/cm²) = Heater Power (W) / Heater Area (cm²)

Conclusion

Thermal dissipation in W/cm² is essential to ensure that a silicone heating blanket operates efficiently, safely, and with a long service life. Working within recommended limits prevents damage, ensures uniform heating, and improves overall process performance.

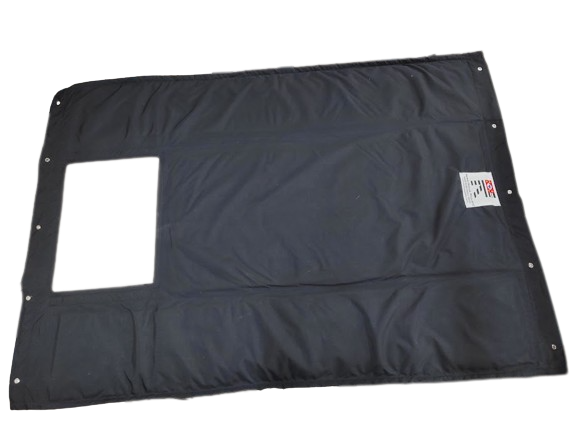

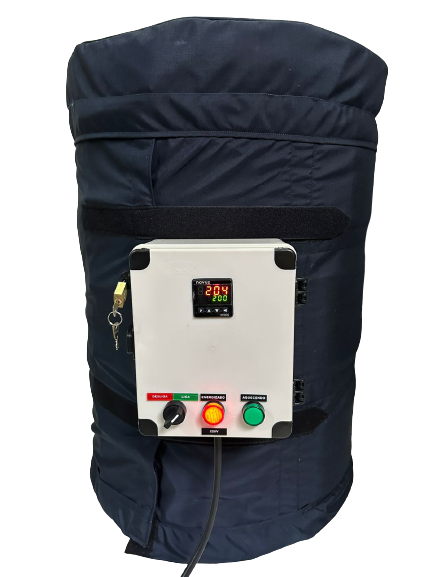

Are you in need of thermal insulation for your heating system? Purchase thermal insulation covers from Paulista Heaters!

Ideal for thermal insulation of containers, piping, drums, and IBCs. Learn more…

O post Heat Dissipation apareceu primeiro em Paulista Heaters.

1. Pascal (Pa) – International System (SI)

The Pascal is the official pressure unit of the International System of Units (SI).

1 Pa = 1 N/m²

It is used in physics, scientific research, and precise calculations.

2. Bar and mbar (bar / millibar)

Widely used in industry and technical applications.

1 bar = 100,000 Pa
1 mbar = 0.001 bar

Millibar is commonly used in meteorology.

3. Atmosphere (atm)

Represents the average atmospheric pressure at sea level.

1 atm = 101,325 Pa ≈ 1.013 bar

4. psi, psia, and psig (pounds per square inch)

Traditional U.S. pressure scale, widely used in hydraulic, pneumatic systems, and compressors.

• psi: pounds per square inch
• psia: absolute pressure
• psig: gauge pressure (relative pressure), excluding atmospheric pressure

Example:
0 psig means atmospheric pressure.

5. Torr and mmHg (millimeters of mercury)

Mainly used in vacuum systems, chemistry, and medicine.

1 Torr ≈ 1 mmHg
760 mmHg = 1 atm

6. inHg (inches of mercury)

Used in aviation and meteorology.

Example:
Atmospheric pressure ≈ 29.92 inHg

7. kgf/cm² (kilogram-force per square centimeter)

Very common in industrial applications, hydraulics, pumps, and boilers.

1 kgf/cm² ≈ 14.22 psi ≈ 0.98 bar

8. inH₂O and mmH₂O (water column)

Used to measure small pressures, mainly in:

• Ventilation systems
• HVAC systems
• Low-pressure systems
• U-tube manometers

Pressure Classification by Reference Type

In addition to units, pressure can be measured according to three reference types:

A) Absolute Pressure (abs or “a”)

Reference: absolute vacuum

Example:
1 atm = 1.013 bar abs

B) Gauge Pressure (g or “gauge”)

Reference: atmospheric pressure

Example:
0 bar(g) = atmospheric pressure

C) Differential Pressure (ΔP)

Difference between two pressure points.

Used in filters, ducts, pumps, and similar applications.

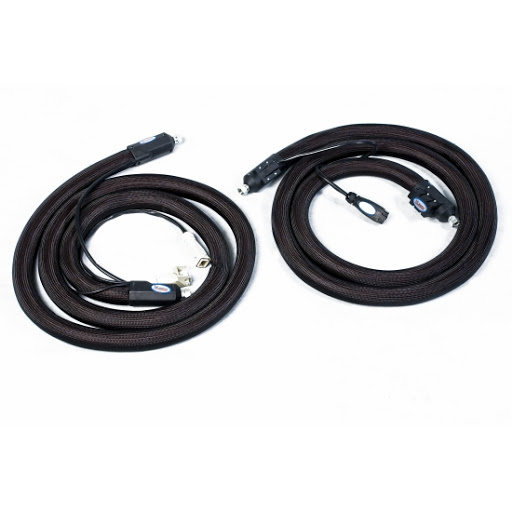

Do you need a Heated Hose for your machine? At Paulista Heaters, you’ll find the ideal solution!

Ideal for Hot Melt Glue Machines. Learn More…

O post Pressure Conversion Guide apareceu primeiro em Paulista Heaters.

Temperature can be measured using different scales, each applied in specific areas of science, industry, and everyday life. The four most well-known temperature scales are:

• Celsius (°C)
• Fahrenheit (°F)
• Kelvin (K)
• Rankine (°R or °Ra)

Below, you will learn what each scale is used for and how to convert between them in a simple way.

1. Celsius Scale (°C)

This is the scale used in most parts of the world. It is based on the freezing point of water (0 °C) and its boiling point (100 °C) at sea level.

2. Fahrenheit Scale (°F)

Widely used in the United States. On this scale:

• Water freezes at 32 °F
• Water boils at 212 °F

3. Kelvin Scale (K)

This is the official scientific temperature scale. It starts at absolute zero (0 K), the lowest possible temperature.

The Kelvin scale does not use the degree symbol (°).

Important relation:
0 °C = 273.15 K

4. Rankine Scale (°R or °Ra)

Primarily used in engineering in the United States.

It is similar to the Kelvin scale but uses degree increments equivalent to Fahrenheit.

Important relation:
0 °R corresponds to absolute zero (0 K).

CONVERSION FORMULAS BETWEEN SCALES

°C → °F:
°F = °C × 1.8 + 32

°F → °C:
°C = (°F − 32) × 0.5556

°C → K:
K = °C + 273.15

K → °C:
°C = K − 273.15

°F → °R:
°R = °F + 459.67

°R → °F:
°F = °R − 459.67

K → °R:
°R = K × 1.8

°R → K:
K = °R × 0.5556

°C → °R:
°R = (°C + 273.15) × 1.8

°R → °C:
°C = (°R × 0.5556) − 273.15

°F → K:
K = (°F − 32) × 0.5556 + 273.15

K → °F:
°F = (K − 273.15) × 1.8 + 32

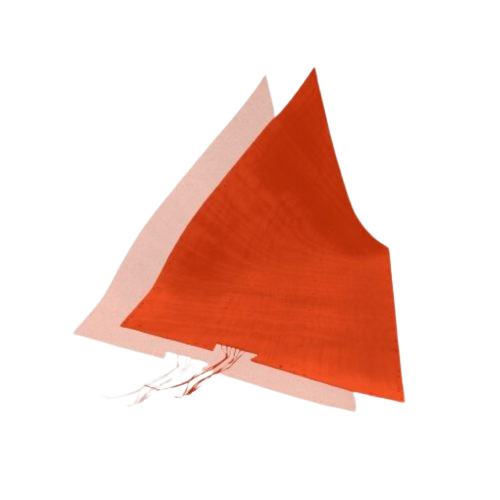

Need to Heat a Thermal Press? Buy Heating Blankets from Paulista Heaters!

Perfect for Thermal Press Heating. Learn More…

O post Temperature Conversion Guide apareceu primeiro em Paulista Heaters.

By following a few fundamental precautions, it is possible to significantly reduce heater-related problems, increase efficiency, and lower maintenance costs. Below are ten important recommendations to extend the service life and performance of these devices.

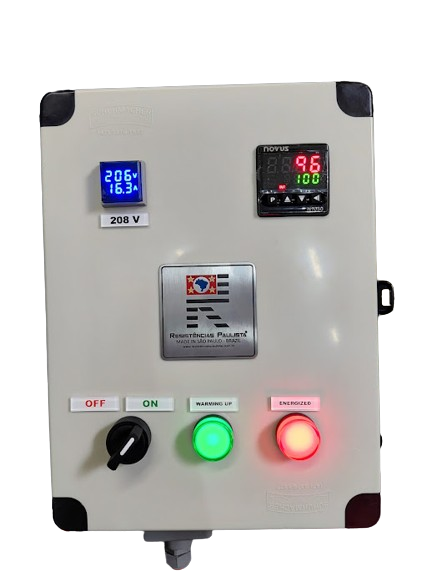

Tip 1 — Use Proper Temperature Control and Protection Systems

To ensure good performance and durability, the heater must operate with an appropriate control system. Every application should have at least a process temperature sensor (monitoring the material being heated) and a high-limit sensor (monitoring the heater sheath temperature).

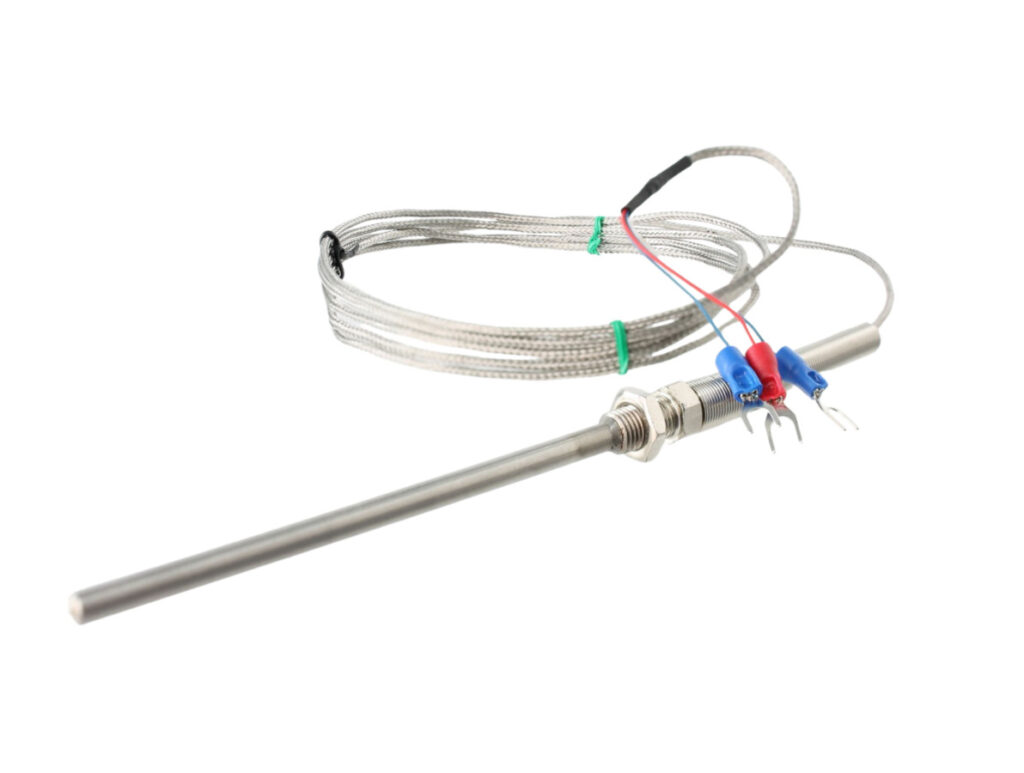

The process sensor should be immersed in the fluid or installed inside a thermowell. For safety, it is recommended to use two systems: one for temperature control and another for safety limit protection.

PID controllers provide greater precision and faster response than On/Off controllers or thermostats, although they may have higher cost — and are not always necessary for processes that do not require high accuracy.

Ideally, the control system should maintain temperature within defined standards and include overheat protection.

Tip 2 — Protect the Heater Against Corrosion

Contamination is one of the main causes of premature heater failure. Since the element expands and contracts during thermal cycles, organic or conductive materials may form, leading to electrical arcing between coils or between the coil and grounded sheath.

Terminals must also be protected against dirt and moisture to prevent poor contact and short circuits. Keeping terminals clean and properly sealed significantly reduces these risks.

In corrosive fluid applications, consult corrosion compatibility charts to verify sheath material suitability.

Tip 3 — Prevent Dirt Buildup on the Heating Element

Deposits such as scale, residue, sludge, and crust reduce efficiency and force the heater to operate at higher temperatures, accelerating deterioration.

These accumulations should be removed regularly — or at least controlled — to ensure proper heat transfer to the fluid. Periodic cleaning prevents overheating and extends equipment life.

Tip 4 — Protect Terminals from Excessive Movement and High Temperatures

In machines with significant vibration or movement, heater terminals must be secured and protected to prevent breakage or mechanical damage.

When exposed to temperatures up to 260°C (500°F), fiberglass-insulated cables are recommended; above that, fiberglass with mica insulation is required.

Whenever possible, keep terminals away from high-temperature zones to avoid thermal degradation.

Tip 5 — Install Immersion Heaters Properly in Tanks

For tank heating, immersion heaters should be installed horizontally at the bottom to allow natural convective circulation of the fluid. Vertical installation should only be used when proper positioning is not possible.

Avoid placing the element too close to the tank bottom to prevent contact with sediment, which can cause overheating. Also, avoid confined areas that restrict fluid flow or trap vapor.

Tip 6 — Confirm Compatibility Between Sheath Material and Watt Density (W/cm²)

Proper selection of sheath material and watt density is essential to prevent premature failure.

• For low to medium temperatures: carbon steel, aluminum, silicone, etc.
• For high temperatures: stainless steel or special alloys.

As temperature increases, watt density must decrease to prevent oxidation and internal wire rupture.

For gas heating, selection depends on operating temperature and flow rate. For example:

Hydrogen allows higher watt densities but requires Incoloy 800*, while nitrogen can be heated using stainless steel 304. Adding fins and increasing gas velocity improves heat transfer.

For liquids, decisions depend on flow rate, density, temperature, and proper watt density — such as 1.4 W/cm² for fuel oil at 82°C and 9–15 W/cm² for water with copper sheath.

Tip 7 — Properly Size and Select the Heater

Power must be calculated according to actual process requirements, ensuring the On/Off operating cycle is appropriate.

In precision-fit applications, the bore or housing must be correctly specified to eliminate air gaps and guarantee efficient heat transfer.

Tip 8 — Avoid Long On/Off Cycles

Poorly configured On/Off cycles cause large temperature variations, resulting in excessive expansion and contraction of the resistive wire — leading to oxidation and premature breakage.

Thermostats often create this issue due to slow temperature response.

A better — though more costly — solution is using PID controllers with contactors or, ideally, solid state relays (SSR). These allow extremely fast switching (milliseconds), reducing thermomechanical stress and significantly increasing heater lifespan.

Tip 9 — Use the Correct Voltage

The applied voltage must match the heater’s rated voltage. Any increase or decrease changes power quadratically.

For example:

A 110 V / 2000 W heater connected to 220 V will operate at 8000 W — four times the rated power — causing immediate burnout and equipment damage.

Tip 10 — Properly Ground the System

All equipment using heaters must be properly grounded. Grounding protects both the installation and operators in the event of electrical faults and is an essential safety practice.

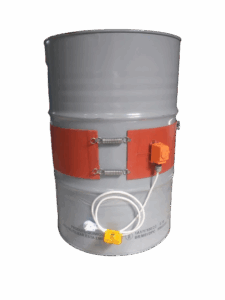

Need to Heat an IBC? Buy Heating Blankets from Paulista Heaters and Ensure Top Quality!

Perfect for Heating 1000L IBC Tanks. Learn More…

O post Ten Tips to Improve Heater Performance and Extend Its Service Life apareceu primeiro em Paulista Heaters.

All heating projects involve the following steps:

Definition of the Heating Problem

• Gather all relevant application data.
• Prepare a sketch or schematic to facilitate visualization of the situation.

Power Requirement Calculation

(According to “Basic Calculation for Power Energy Evaluation”)

• Power required for initial heating (start-up).
• Power required to maintain the process at the desired temperature.
• Heat losses through walls, surfaces, and equipment structure.

Review of Operating Factors

• Maximum flow rate of the material to be heated.
• Type and efficiency of thermal insulation.
• Mass and dimensions of materials.
• Time required for initial heating and subsequent cycles.
• Ideal operating temperature.
• System efficiency.
• Safe watt density limits.
• Mechanical aspects (expansion, dimensions, available space).
• Environmental conditions.
• Expected heater service life.
• Electrical installation characteristics.
• Safety parameters.

Heater Selection

• Define the appropriate heater type.
• Choose the correct size.
• Determine the required quantity.

Control System Selection

• Type and positioning of the temperature sensor.
• Temperature controller models.
• Power controller types.

The heating problem must be clearly defined, especially regarding operating conditions.

When designing a thermal system, it is not always possible to predict all variables. Therefore, the use of a safety factor is essential. It increases heater capacity beyond the strictly calculated value, preventing failures due to unforeseen conditions. After this initial definition, the required power calculation proceeds.

Determination of Thermal Energy

Thermal energy (Q) is heat.

In any heating process, the objective is to raise or maintain the temperature of a solid, liquid, or gas at appropriate levels. In general, applications are divided into two groups:

• Constant temperature processes.
• Variable temperature processes.

The calculation principles are similar for both.

Constant Temperature Applications

In these cases, the material temperature is maintained at a fixed value, which simplifies calculations due to minimal operational variations. Typical examples include comfort heating systems and freeze protection for pipelines.

Variable Temperature Applications

Here, the process includes initial heating and multiple operational variables. The total required energy calculation involves summing all these variables, making the process more complex than constant-temperature cases. Considered factors include:

Total Energy Absorbed

Includes energy required to heat the material, latent heat (fusion or vaporization), and heating of containers, supports, and other components.

Total Energy Lost

Includes losses by conduction, convection, radiation, ventilation, and evaporation during start-up and operation.

Safety Factor

Additional reserve capacity to compensate for unforeseen or unaccounted variables.

Application Procedure

Heater selection depends on the greater of two power requirements:

• Power required for initial heating within a defined time.
• Power required to maintain temperature during operation.

Normally, start-up power differs from continuous operation power. Therefore, both conditions must be analyzed before equipment selection.

Heating Energy Calculation

The first step is to determine the absorbed energy.

If a phase change occurs (fusion, vaporization, etc.), latent heat must be included in calculations — both for start-up and maintenance.

At Start-up

• Heat absorbed by the product and associated materials (tanks, drums, supports).
• Latent heat (fusion or vaporization).
• Time required to reach the desired temperature.

During Operation

• Continuous heat absorbed by the product, conveying equipment, and replenished material.
• Latent heat when applicable.
• Process time or cycle duration.

Determination of Heat Losses

Materials exposed to the environment lose heat through radiation, conduction, and convection; liquids also lose energy through evaporation.

These losses must be estimated and added to the total calculation.

Start-up Losses

Initially low (equipment at ambient temperature), gradually increasing until operational temperature is reached. The average between initial and final values is typically used.

Operational Losses

At this stage, losses reach maximum levels and must be added to the system’s required power.

Thermal Loss Estimates

Graphs and tables allow calculation of radiation, conduction, and convection losses on different surfaces, typically expressed in kcal/m² or similar units.

Safety Factor

The safety factor compensates for variables that cannot be fully predicted, such as:

• Ambient temperature variations.
• Voltage fluctuations.
• Door openings.
• Changes in material temperature.
• Influence of external elements.

Small and stable systems require lower safety factors; large and complex systems require higher values.

General Safety Factor Guidelines:

• Small systems: 10%
• Medium level systems: 20%
• Large systems: 20% to 35%

This factor must be added to the final required power calculation.

Keep Your Pipes at the Perfect Temperature – Paulista Heaters Can Help!

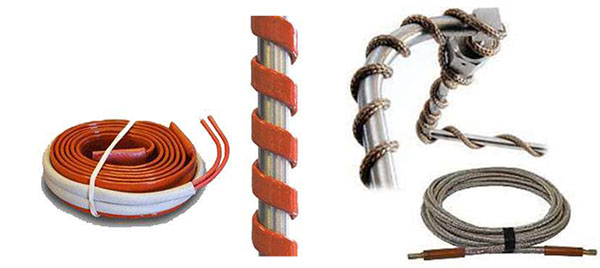

Heating Tape and Heat Tracing Solutions for Pipe Heating.Learn More…

O post Requirements for Proper Heater Sizing apareceu primeiro em Paulista Heaters.

Temperature measurement is essential in industrial processes, laboratories, and electronic applications. For this purpose, a variety of sensors are used, each with specific characteristics regarding accuracy, temperature range, stability, and cost. Among the most common are Type J and Type K thermocouples, PT100 and NI120 resistance sensors, and PTC sensors.

1. Type J Thermocouple

The Type J thermocouple is composed of two metals: iron (Fe) and constantan (Cu-Ni).

Typical range: –40°C to 750°C
Advantages: low cost, fast response, and suitable for dry, non-oxidizing environments.
Disadvantages: iron oxidizes easily, reducing lifespan at high temperatures.

2. Type K Thermocouple

Type K is the most widely used thermocouple in industry, made of chromel (Ni-Cr) and alumel (Ni-Al).

Typical range: –200°C to 1,260°C
Advantages: wide operating range, good stability, and low cost.
Disadvantages: less accurate than resistance sensors and sensitive to reducing atmospheres.

3. PT100 (Platinum RTD)

The PT100 is a Resistance Temperature Detector (RTD) made of platinum with a nominal resistance of 100 Ω at 0°C.

Typical range: –200°C to 600°C
Advantages: high accuracy, excellent repeatability, and long-term stability.
Disadvantages: higher cost and requires more sophisticated measurement circuits.

4. NI120

The NI120 is a nickel RTD with a nominal resistance of 120 Ω at 0°C.

Typical range: –80°C to 260°C
Advantages: lower cost than PT100 and high sensitivity within its working range.
Disadvantages: lower linearity and stability compared to PT100.

5. PTC Sensors

PTC (Positive Temperature Coefficient) sensors are resistors whose resistance increases significantly with temperature.

Typical range: varies depending on the material, generally –50°C to 150°C
Advantages: robust, inexpensive, and widely used for thermal protection in motors and electronics.
Disadvantages: non-linear and not highly accurate for precise measurement; more commonly used as detectors rather than exact measuring devices.

General Summary

• Thermocouples (J and K): wide range, fast response, lower accuracy.
• RTDs (PT100 and NI120): high accuracy and stability; widely used in industrial quality control.
• PTC: ideal for thermal protection, not for high-precision measurement.

Depending on the application, temperature sensors may feature a welded tip for internal measurement of electrical heaters, a metallic probe (bulb) for measuring the heated product, or a threaded head for installation in tanks to measure container temperature.

Sensors can also be supplied with different cable types:

• Teflon cable (up to 260°C)
• Fiberglass cable (up to 450°C)
• Metal braided cable (up to 700°C)

Looking for a Temperature Controller? Find the Perfect Solution at Paulista Heaters!

Perfect for Precise Temperature Control. Learn More…

O post Types of Temperature Sensors apareceu primeiro em Paulista Heaters.

Heating energy is basically transferred through three modes, and most heating applications involve one or another method described below:

Conduction is the mechanism of heat transfer in which thermal energy is transmitted from one point to another through the interaction of atoms or molecules of matter. Generally, energy transfer occurs through solids such as aluminum, copper, and brass, which are good heat conductors. Glass, ceramics, and plastics are relatively poor heat conductors and are often used as thermal insulators. All gases are poor heat conductors. Combinations of fiberglass or ceramic with air trapped between the fibers are excellent thermal insulators. Typical heating applications by conduction include: heated plates using cartridge heaters, tanks heated by silicone heating blankets, sheath heaters, trace heating, and other applications where the heating element is in direct contact with the material to be heated.

Convection is the mode of heat transfer through the circulation and diffusion between a solid surface and a fluid (or gas). Convection involves two elements:

1. Energy transfer due to molecular movement (diffusion).
2. Energy transfer by bulk or macroscopic movement of the fluid (advection).

Convection is the most common method for heating fluids or gases and is also the most frequent application for tubular heaters. The fluid or gas in direct contact with a heat source is first heated by conduction, which causes expansion. The expanded material becomes less dense and tends to rise. As it rises, gravity replaces it with cooler, denser material, repeating the cycle. This circulation pattern distributes heat energy throughout the space via thermosiphoning. In forced convection, pumps or fans are used in gases and liquids to improve homogenization.

Thermal Radiation is the thermal energy emitted by bodies in the form of electromagnetic waves due to temperature. All bodies with temperatures above absolute zero emit thermal energy. Since electromagnetic waves can travel through a vacuum, no medium is required for radiation to occur.

Infrared energy radiated from a hot object (heating element) passes through the surface of a cooler object and is absorbed and converted into heating energy. Drying paint using infrared heaters is a typical application of infrared heating. The most important principle in infrared heating is that the infrared energy radiates from the source in straight lines and does not become heat energy until it is absorbed by the material to be heated.

Need to Heat a Drum? Find the Perfect Solution at Paulista Heaters!

Perfect for Heating Drums or Barrels. Learn More…

O post Theoretical Fundamentals of Heat Transfer” apareceu primeiro em Paulista Heaters.

Simply put, the law states that:

The electric current flowing through a conductor is directly proportional to the applied voltage and inversely proportional to the resistance of the circuit.

This relationship is expressed by the formula:

V = R · I

Where:

• V is voltage (in volts – V)
• I is electric current (in amperes – A)
• R is electrical resistance (in ohms – Ω)

How to understand this?

• If we increase the voltage while the resistance stays the same, the current increases.
• If we increase the resistance while keeping the voltage the same, the current decreases.
• The behavior of the current always depends on the balance between voltage and resistance.

Practical applications of Ohm’s Law
Ohm’s Law is present in almost everything involving electricity. Some examples include:

• Sizing electrical wires and cables.
• Calculating the current that a device will consume.
• Choosing the correct resistors in electronic circuits.
• Understanding why certain devices heat up or burn when the voltage is inappropriate.

Simple example
If you have a lamp with a resistance of 20 Ω connected to a 10 V source, the current will be:

I = V / R = 10 / 20 = 0.5 A

This means the lamp will draw 0.5 amperes from the source.

Ohm’s Law Wheel

Looking for the Perfect Heating Solution? Get Your Silicone Heating Blanket at Paulista Heaters!

Perfect for Heating Surfaces. Learn More…

O post Ohm’s Law apareceu primeiro em Paulista Heaters.

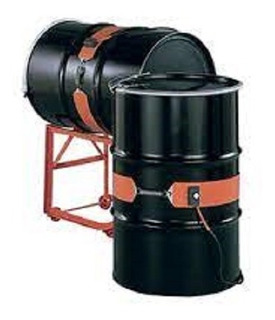

Paulista Heaters offers the ideal solution with Heater Bands designed for heating metal or plastic drums in a wide range of sizes and formats.

Which System Is Best for Heating Drums?

In industrial applications, there are generally two main methods used to heat products stored in drums: gas heating and electric heating.

Both systems can be effective, but the best choice depends on factors such as temperature control requirements, safety standards, energy efficiency, and the nature of the material being heated.

Many companies initially consider what seems to be a simpler solution by developing a gas-based system to heat drums. In practice, this usually involves building a type of furnace where fuel is burned and the drum is placed above it for heating.

While this method does generate heat for the products stored inside the drum, it presents several significant drawbacks. It is not a safe solution, does not provide precise temperature control, and is often more expensive and complex to implement and operate.

On the other hand, an electric drum heating system is significantly safer, easier to install and operate, and offers much more precise temperature control.

Resistências Paulista supplies heater bands and heating jackets designed for heating metal and plastic drums of all sizes, with temperature ranges tailored to your specific process requirements.

We also develop the same heating solutions for plastic containers (carboys) in various sizes and formats.

Using a thermal heating blanket to heat drums offers several advantages compared to gas flame heating — especially when safety, precise temperature control, and product preservation are priorities.

1. Superior Safety

Thermal blankets eliminate the use of open flames, significantly reducing risks such as:

• Fire or explosion
• Gas leaks and related accidents
• Carbonization of residues around the drum

This is particularly important when handling flammable, viscous, or heat-sensitive materials.

2. Precise Temperature Control

Thermal blankets can be equipped with:

• Analog temperature controllers
• Digital temperature controllers
• Uniform and gradual heating systems

Gas flame heating produces uneven temperatures and is subject to wind variations, excessive flame intensity, and localized overheating. This can damage the product or abruptly alter its viscosity.

3. Product Quality Preservation

Many substances stored in drums (oils, resins, waxes, adhesives, chemicals, greases, food products, etc.) require:

• Homogeneous heating
• No burning
• No thermal shock

Gas flames heat aggressively and unevenly from the outside inward, which may:

• Degrade the material
• Cause phase separation
• Create burned or carbonized spots

4. Energy Efficiency and Lower Operating Costs

Thermal heating blankets:

• Consume less energy
• Use electricity in a stable and controlled manner
• Minimize heat loss to the surrounding environment

Gas flame systems:

• Have lower thermal efficiency
• Dissipate significant heat into the air
• Require continuous fuel supply
• Involve higher maintenance and risk of damage

5. Easy Installation and Operation

A thermal blanket:

• Simply wraps around the drum
• Connects to a power outlet
• Allows temperature adjustment via controller

Gas systems require structural setup, fuel lines, burners, constant flame regulation, and additional safety precautions.

6. Clean and Environmentally Friendly

Thermal blankets:

• Produce no smoke
• Do not contaminate the environment
• Do not blacken or damage the drum surface
• Generate no soot

Gas flame heating produces residue, excess ambient heat, and greater environmental impact.

7. Extended Drum Lifespan

Uniform heating prevents:

• Deformation
• Excessive expansion
• Premature surface wear

Direct flame exposure can warp the drum, damage its coating, and compromise structural integrity.

Conclusion

Heating drums with a thermal heating blanket is safer, more economical, cleaner, more precise, and more efficient than gas flame heating.

It is the ideal solution for companies seeking higher productivity, product preservation, and compliance with industrial safety standards.

Looking to heat a drum? Paulista Heaters offers high-performance thermal blankets for efficient drum heating!

Designed for efficient heating of metal drums and plastic containers. Learn more…

O post How to Heat a Drum? apareceu primeiro em Paulista Heaters.

It is common to find both Silicone Heater Bands and Metal Heater Bands available on the market. But what is the difference between them, and which one is the better option?

Both types of heater bands are designed to heat drums. However, the Silicone Heater Band offers significant advantages compared to the Metal Heater Band. Let’s take a closer look:

• Flexibility and Surface Contact: Silicone heater bands are highly flexible, allowing them to conform closely to the drum’s surface. This reduces air pockets and improves heat transfer efficiency. As a result, heating is more uniform, even on slightly dented or irregular containers.
• Chemical Resistance: Reinforced silicone (e.g., fiberglass-reinforced) offers excellent resistance to chemical environments. This is particularly advantageous when drums contain aggressive materials or solvents.
• Electrical Insulation and Safety: Silicone provides strong electrical insulation properties. Additionally, heater bands can include a thermal insulation layer to reduce heat loss to the surrounding environment, improving safety and energy efficiency.
• Thermal Efficiency and Heat Retention: Some silicone heater bands are equipped with insulating silicone foam to minimize heat loss. Due to their flexibility and close surface contact, they enhance heat transfer directly into the drum contents.
• Durability and Service Life: Silicone heater bands withstand vibration, bending, and repeated use without cracking or mechanical failure. They are designed for reliable operation and reduced risk of burnout when properly installed and applied.

Why Use a Drum Heater Band?

The Drum Heater Band is designed for heating applications such as melting, thawing, and viscosity control of solid and semi-solid resins.

In addition, it offers broad industrial applicability, being widely used in chemical, pharmaceutical, food processing, and other industrial secto

Looking to heat drums or containers? Paulista Heaters manufactures high-performance Silicone Heater Bands for efficient and reliable heating.

Designed for Efficient Drum and Container Heating Applications. Learn more…

O post Silicone Heater Bands vs. Metal Heater Bands apareceu primeiro em Paulista Heaters.
